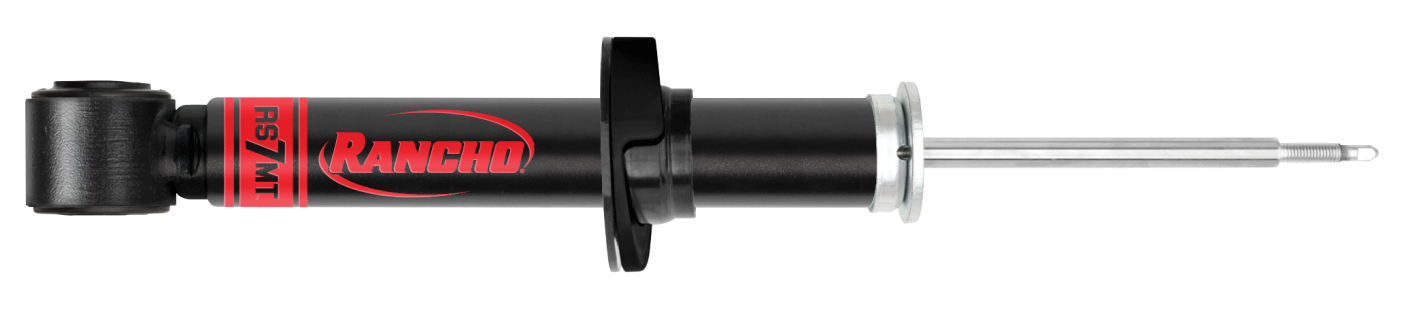

RS7MT® Monotube Struts

Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube struts are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT struts feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

Features & Benefits

PRECISE HANDLING AND PERFORMANCE

Deflective Disc Valving features digressive, linear or progressive turning based on application requirements for precision handling and performance on- and off-road  

STRONG AND DURABLE

Features a 14mm hardened chrome piston rod to resist scuffs and corrosion, double-welded loops at stress areas, double-strength closure method, and hot form reserve tube  

HANDLES EXTREME TEMPERATURE CHANGES

Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F  

REDUCES FADE

Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and fade 

SMOOTH PERFORMANCE

Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness, while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride  

THE RIGHT FIT

Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware 

KEEPS DIRT AND DEBRIS OUT

Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the strut and contaminating the oil and destroying the internal seal 

BUILT TO LAST

Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling

BOLD APPEARANCE

Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out 

BUY WITH CONFIDENCE

Comes with Rancho’s limited lifetime warranty
